HANSENBATTERY SYSTEMSLithium iron phosphate cell

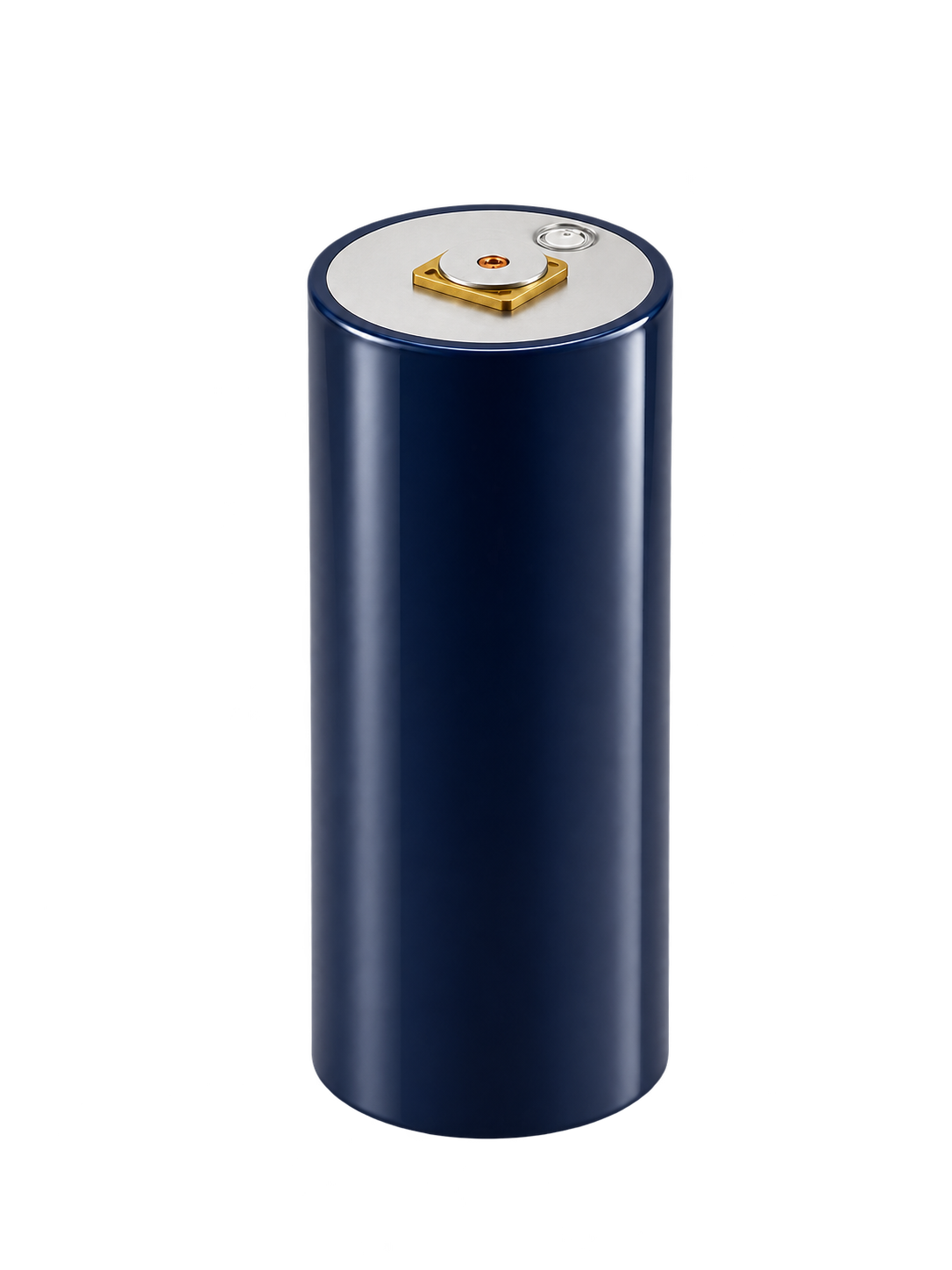

50Ah LFP Cell
High-rate cylindrical lithium iron phosphate cell for commercial battery packs and mobility systems.
Model: LFR60150LE1-50Ah-N
Technical data
50Ah LFP Cell specifications
- Nominal voltage
- 3.2 V
- Rated capacity
- 50 Ah
- Weight
- 945 ±20 g
- Dimensions
- Ø60.2 × 153.1 mm
- Continuous discharge
- 1.5C
- Operating temperature
- Charge −20–60°C / Discharge −30–60°C
Application and qualification support
Hansen supports cell selection, incoming inspection, matching, CCS design, BMS integration and test-equipment selection. Final specifications, certificates, lot availability and commercial terms are confirmed against the required application and order quantity.
