HANSENBATTERY SYSTEMSLithium iron phosphate cell

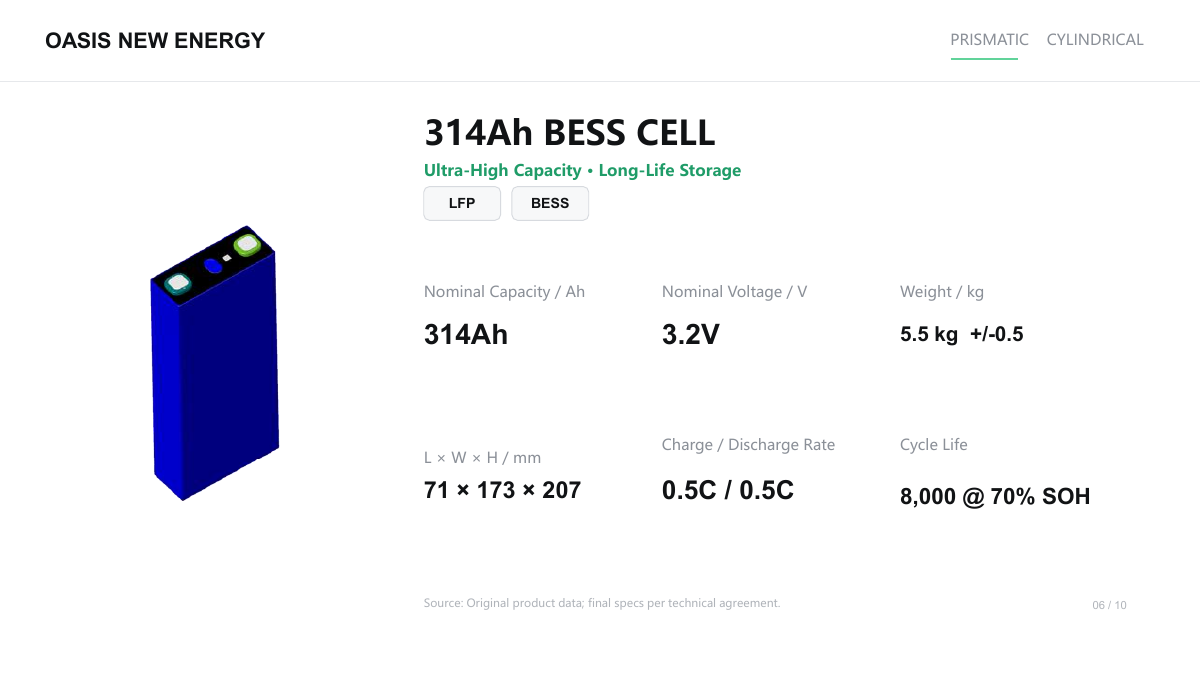

314Ah LFP Cell
Long-life 314Ah prismatic LFP cell for utility-scale and commercial energy-storage projects.
Model: 314Ah energy-storage cell
Technical data
314Ah LFP Cell specifications
- Nominal voltage
- 3.2 V
- Rated capacity
- 314 Ah
- Weight
- 5.5 kg ±0.5
- Dimensions
- 71 × 173 × 207 mm
- Charge / discharge rate
- 0.5C / 0.5C
- Cycle life
- 8,000 cycles at 70% SOH
Application and qualification support
Hansen supports cell selection, incoming inspection, matching, CCS design, BMS integration and test-equipment selection. Final specifications, certificates, lot availability and commercial terms are confirmed against the required application and order quantity.
