HANSENBATTERY SYSTEMSLithium iron phosphate cell
205Ah LFP Cell
High-capacity prismatic lithium iron phosphate cell designed for stationary energy-storage systems.
Model: 205Ah prismatic LFP
Technical data

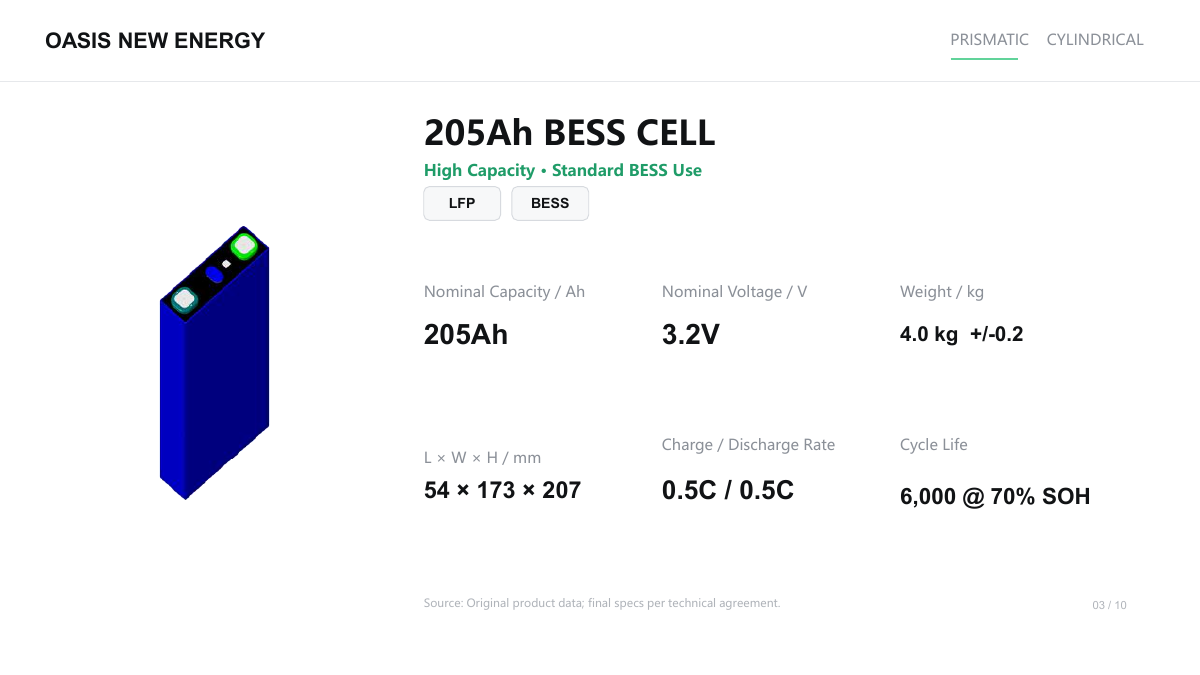

205Ah LFP Cell specifications
- Nominal voltage
- 3.2 V
- Rated capacity
- 205 Ah
- Weight
- 4.0 kg ±0.2
- Dimensions
- 54 × 173 × 207 mm
- Charge / discharge rate
- 0.5C / 0.5C
- Cycle life
- 6,000 cycles at 70% SOH
Application and qualification support
Hansen supports cell selection, incoming inspection, matching, CCS design, BMS integration and test-equipment selection. Final specifications, certificates, lot availability and commercial terms are confirmed against the required application and order quantity.
