HANSENBATTERY SYSTEMSLithium iron phosphate cell

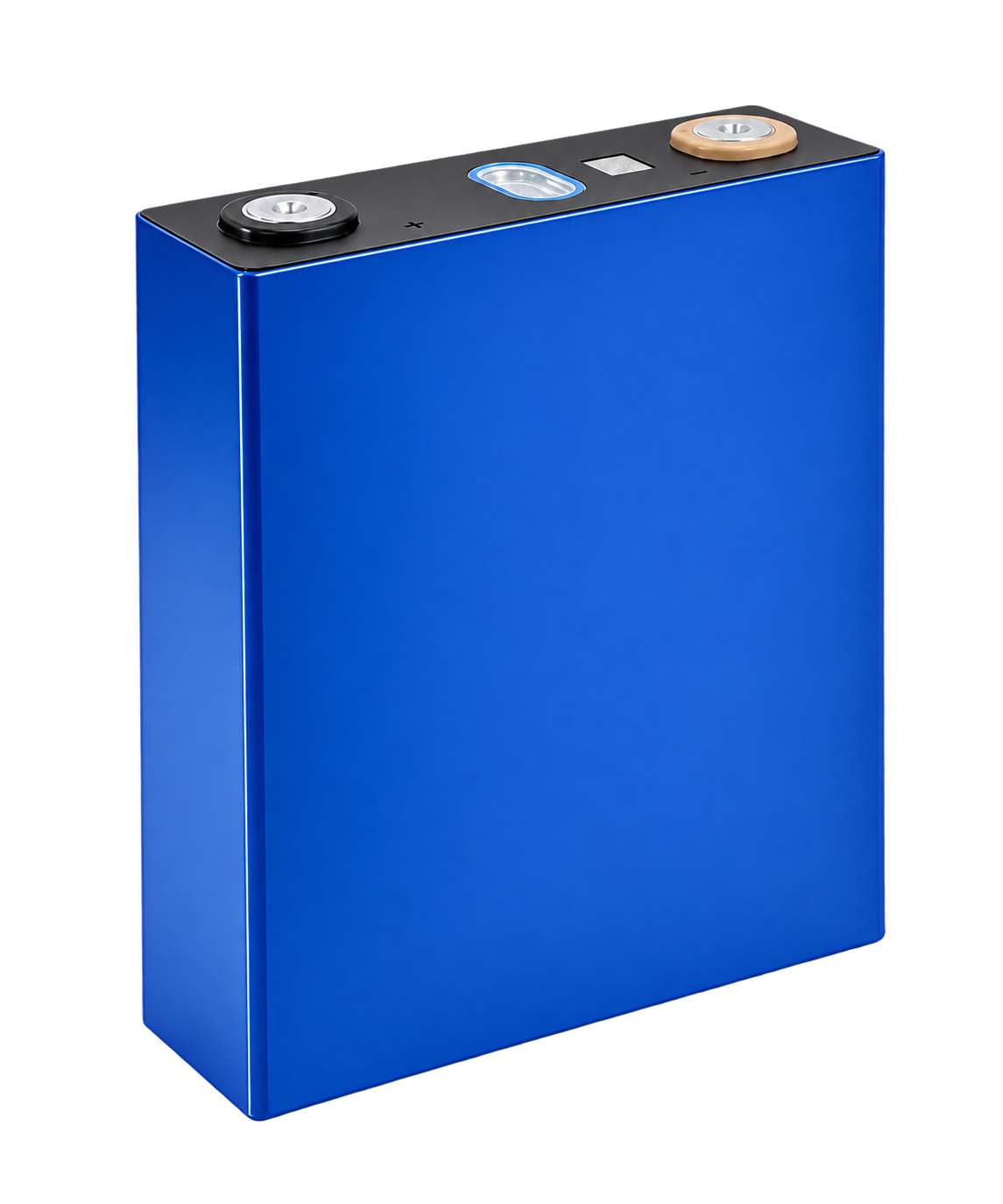

100Ah LFP Cell
Prismatic LFP cell for energy storage, light-mobility and industrial battery systems.
Model: IFP48173115-100Ah
Technical data
100Ah LFP Cell specifications
- Nominal voltage
- 3.2 V
- Rated capacity
- 100 Ah / 320 Wh
- Weight
- 1.98 kg ±0.1
- Dimensions
- 49.9 × 160 × 118.5 mm
- Charge / discharge rate
- 0.5C / 0.5C
- Cycle life
- 6,000 cycles at 70% SOH
Application and qualification support
Hansen supports cell selection, incoming inspection, matching, CCS design, BMS integration and test-equipment selection. Final specifications, certificates, lot availability and commercial terms are confirmed against the required application and order quantity.
